Foot valves are installed on the suction side of pumps to prevent reverse flow from the pump back into the sump, ensuring the pump remains primed.
They also serve to block foreign particles from entering the pump through the suction pipe. These valves are designed specifically for use with clear water.
Robust and durable construction ensures minimal head loss across the valve. Features perfectly flat seating surfaces for effective sealing. Effectively blocks foreign objects from entering the pump through the suction pipe.

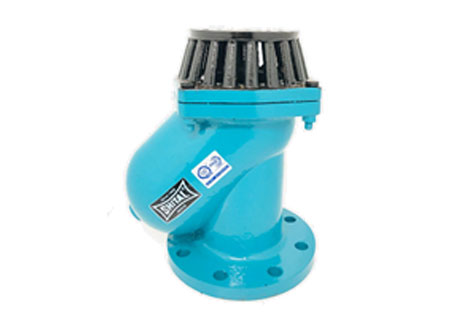

Ball Type Foot Valve Flanged End
| Size Range | 2” (50 mm) To 6” (150 mm) |
|---|---|
| Material | C.I. |
| Type | Ball Type |
| Ball Material | Rubber |
| End Connection | Flanged End |
| Flange Drilling | Table D-E, PN-16, Class 150#, IS-1538 |

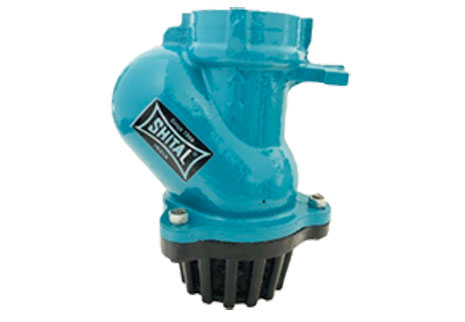

Ball Type Foot Valve Threaded End
| Size Range | 2” (50 mm) To 4” (100 mm) |
|---|---|
| Material | C.I. |
| Type | Ball Type |
| Ball Material | Rubber |
| End Connection | Threaded |
| Thread Type | BSP Thread |
